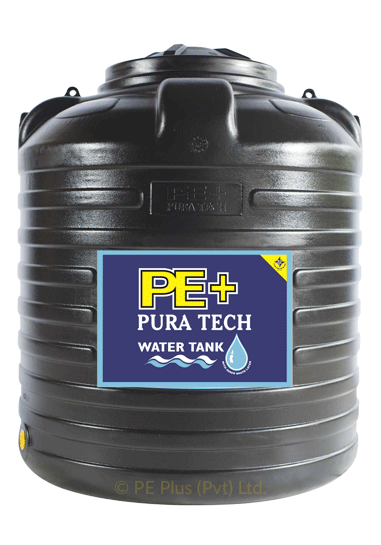

PE+ PURA TECH
Designed with high quality materials and crafted with blow moulding technology, PE+ Pura Tech Water Tanks are manufactured to the highest of standards. And while available in capacities of 500l, 1000l and 2000l, with a storage capacity of up to 10% more for superior air circulation, a threaded lid for security and a white inner layer to check for purity, PE+ Pura Tech Water Tank make for your ideal choice. Turn to PE+ Pura Tech Water Tank, and choose superior quality for your home today.
Features
Upper Shoulder Lugs
Complete with
Inner-White-Layer
Threaded Lid
Tank Dimension
| Capacity (L) |
Diameter |
Height |
| Without Lid |
With Lid |
| mm |
('') |
mm |
('') |
mm |
('') |
| 500 |
900 |
35 4/8" |
1048 |
41 1/4" |
1115 |
43 1/4" |
| 1000 |
1095 |
43" |
1350 |
53" |
1430 |
56 1/4" |
| 2000 |
1280 |
50 1/2" |
1970 |
77 3/4" |
2025 |
79 3/4" |
| Capacity (L) |
|
PVC Socket Size |
| Manhole Diameter |
Inlet |
Overflow |
Outlet |
Washout |
| mm |
('') |
mm |
('') |
mm |
('') |
mm |
('') |
mm |
('') |
| 500 |
410 |
16" |
32 |
1" |
32 |
1" |
50 |
1 1/2" |
32 |
1" |
| 1000 |
410 |
16" |
32 |
1" |
32 |
1" |
50 |
1 1/2" |
32 |
1" |
| 2000 |
410 |
16" |
32 |
1" |
32 |
1" |
50 |
1 1/2" |
32 |
1" |
Sizes
Installation instruction
- Construct a 5” or more high wall around the water tank, using a masonry bricks.
- Leave a space of 4” around the tank.
- Fill the area with fine sand to a height of approximately 100mm/4”.
- Place the tank securely on the fine sand layer as indicated below.
- This waster tank is not recommended for underground use.
- For the best results, connect the inlet, outlet, washout & Overflow lines, using the S-lon PVC pipes & fittings provided. It’s always recommended to obtain the service of an experience S-lon Plumber.
2000l
1000l
500l
